GDONU300-4GWR Technical Specifications

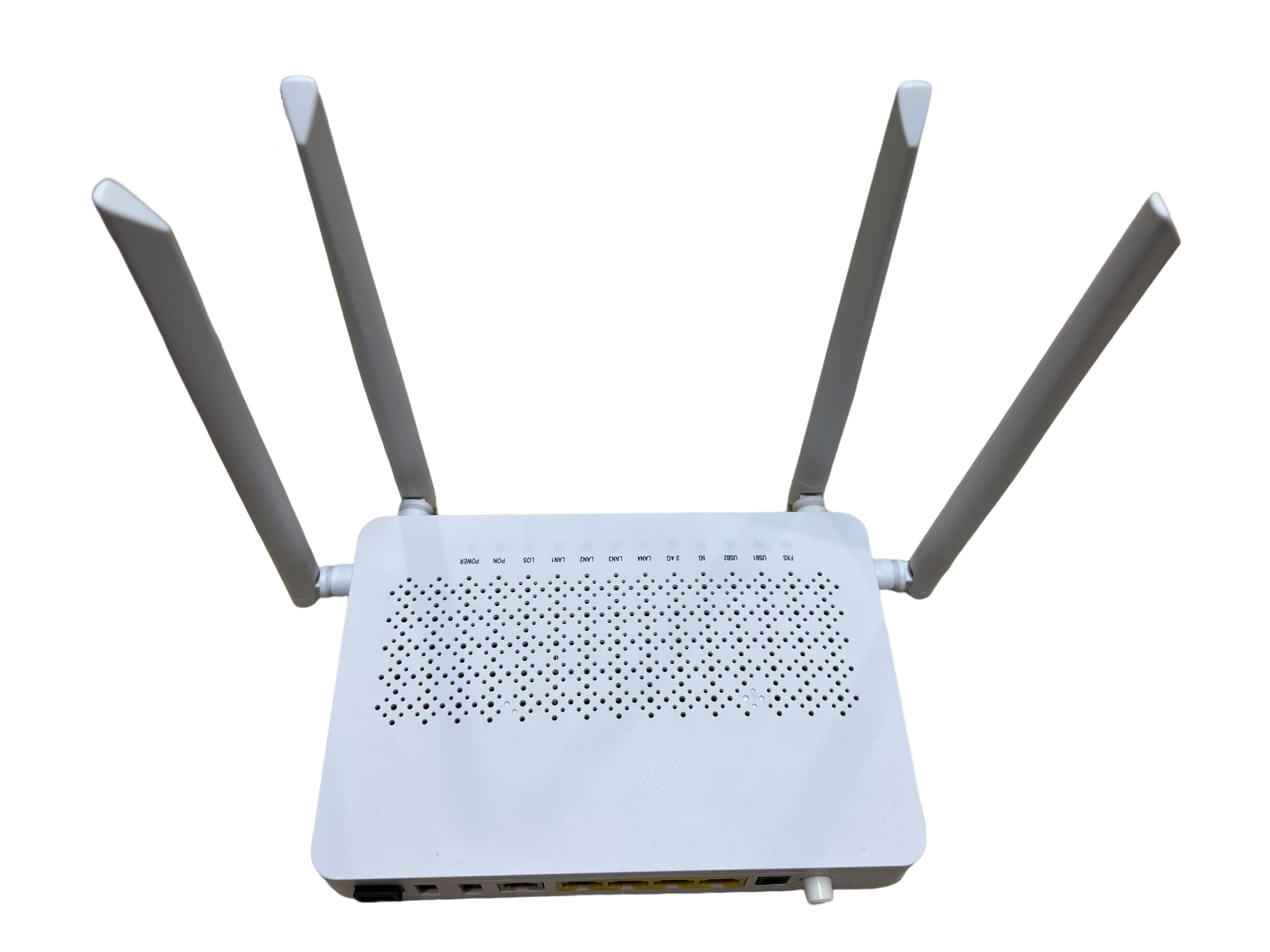

Overview    GDONU300-4GWR is launched to be oriented to multi-service integration network as an optical network unit device by Lootom Telcovideo, which belongs to EPON SFU terminal for FTTH/O scenario. It configures four 10/100/1000Mbps ports, WiFi (2.4G+5G) port and USB interface that providing with high-speed data services and high-quality video services to users. Features        Intelligent interconnection
● WiFi intelligence coverage
● SIP/H.248 auto-adapting
● Any port any service
● Parental control
● L2/L3(IPv4) re-transmission: 1G forward，2G backward
       Properties for three layers
● PPPoE/static IP/DHCP address access
● NAT/NAPT
● ALG,UPnP
● DDNS/DNS server/DNS client
● IPv6/IPv4 dual-stack,DS-Lite
● Static route/default route
       Multicast
● IGMP v2/v3 snooping
● IGMP v2 proxy
● IGMP v3 proxy
● MLD v1/v2 snooping
       Qos
● Ethernet port speed limit
● 802.1p priority
● SP/WRR/SP+WRR
● Broadcast message speed limit
       Security
● SPI Firewall
● MAC/IP/URL address filtering
       O&M
● OMCI/Web UI/TR069
       Power saving
● Indicator light energy-efficient
● Timing switch Technical Specifications        Hardware?parameters

Dimension	220mm x 150mm x 32mm (Without antenna)
Weight	420g
Working environment temperature	0℃～+40℃
Working environment humidity	5% RH～95% RH, non-condensing
Power adapter input level	90V～270V AC，50/60Hz
Device power supply	11V～14V DC，2 A
Static power consumption	7.5 W
Maximum power consumption	18 W
Interfaces	1POTS+4GE+Wi-Fi(2.4G+5G)+USB
Indicator light	POWER/PON/LOS/LAN/TEL/USB/WLAN/WPS/CATV

Interface parameters

PON interface

? Class B+

? -27dBm receiver sensitivity

? Wavelength：upstream 1310nm，downstream 1490nm

? Support WBF

? Flexible mapping between GEM Port and TCONT

? Authentication method: SN/password/LOID (GPON)

? Two-way FEC (Forward error correction)

? Support DBA for SR and NSR

Ethernet port

? Stripping based on VLAN Tag/Tag for Ethernet port.

? 1:1 VLAN/N:1 VLAN/VLAN Pass-through

? QinQ VLAN

? MAC address limit

? MAC address learning

POTS interface

? Maximum number for one port that joint-up connecting in parallel with Telephone：4 REN

? Support G.711A/u，G.729a/b，G.722 CODEC

? Support T.30/T.38 mode for fax

? DTMF

? Emergency calls protocol

WLAN

? IEEE 802.11 b/g/n

? 2×2 MIMO

? Antenna gain：5dBi

? WMM (Wi-Fi multi media)

? Multiple SSID multiple

? WPS

USB interface

? USB2.0

? Network storage according to FTP
